ICL7660CSA+ quotation,ICL7660CSA+ short L/T,ICL7660CSA+ datasheet

Model：ICL7660CSA+
ICL7660CSA+ Datasheet

Switched-Capacitor Voltage Converters
MAXIM IC:ICL7660CSA+
Description:
IC VOLT CONV CMOS SW-CAP 8-SOIC
Manufacture
MAXIM IC
Lead-Free Status:
Lead free
leadtime:
Within 3 days
package/case:
8-SOIC
Packaging:
2500PCS/reel

ICL7660CSA+  Features
Feature

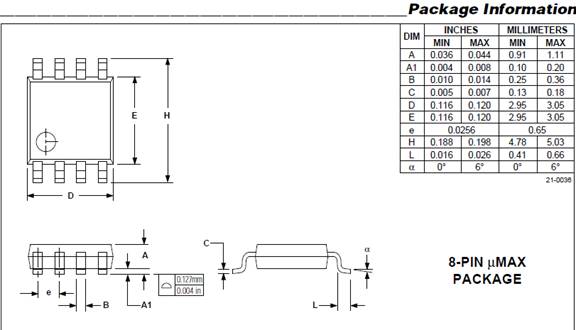

© Miniature μMAX Package
© 1.5V to 10.0V Operating Supply Voltage Range
© 98% Typical Power-Conversion Efficiency
© Invert, Double, Divide, or Multiply Input Voltages
© BOOST Pin Increases Switching Frequencies
(MAX1044)
© No-Load Supply Current: 200μA Max at 5V
© No External Diode Required for Higher-Voltage Operation

Applications
-5V Supply from +5V Logic Supply
Personal Communications Equipment
Portable Telephones
Op-Amp Power Supplies
EIA/TIA-232E and EIA/TIA-562 Power Supplies
Data-Acquisition Systems
Hand-Held Instruments
Panel Meters
ICL7660CSA+ Description
absolute maximum ratings over operating free-air temperature (unless otherwise noted)

Supply Voltage (V+ to GND, or GND to VOUT)..........10.5V
Input Voltage on Pins 1, 6, and 7 ...-0.3V ² VIN ² (V+ + 0.3V)
LV Input Current ....................20μA
Output Short-Circuit Duration (V+ ² 5.5V)..........Continuous
Continuous Power Dissipation (TA = +70°C)
Plastic DIP (derate 9.09mW/°C above +70°C) .......727mW
SO (derate 5.88mW/°C above +70°C).................471mW
μMAX (derate 4.1mW/°C above +70°C) ..............330mW
CERDIP (derate 8.00mW/°C above +70°C).................640mW
TO-99 (derate 6.67mW/°C above +70°C)....................533mW
Operating Temperature Ranges
MAX1044C_ _ /ICL7660C_ _ ..........0°C to +70°C
MAX1044E_ _ /ICL7660E_ _ ...................-40°C to +85°C
MAX1044M_ _ /ICL7660M_ _ ...................-55°C to +125°C
Storage Temperature Range .............-65°C to + 150°C
Lead Temperature (soldering, 10sec) ...........+300°C
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.Consult packaging section of databook for thermal limitations and considerations of package.

The MAX1044 and ICL7660 are monolithic, CMOS switched-capacitor voltage converters that invert, double,
divide, or multiply a positive input voltage. They are pin compatible with the industry-standard ICL7660 and
LTC1044. Operation is guaranteed from 1.5V to 10V with no external diode over the full temperature range. They deliver 10mA with a 0.5V output drop. The MAX1044 has a BOOST pin that raises the oscillator frequency above the audio band and reduces external capacitor size requirements.  The MAX1044/ICL7660 combine low quiescent current and high efficiency. Oscillator control circuitry and four power MOSFET switches are included on-chip.  Applications include generating a -5V supply from a +5V logic supply to power analog circuitry. For applications requiring more power, the MAX660 delivers up to 100mA with a voltage drop of less than 0.65V.

Maxim - Maxim is a worldwide leader in the design, development, and manufacture of analog, mixed-signal, high-frequency, and digital circuits that enable all four of these key interactions. Maxim delivers over 5,900 products. Over 80% of these products were invented by the company's design engineers and are used in a wide variety of microprocessor-based electronics equipment. A sampling of the applications for our circuits includes consumer electronics, personal computers and peripherals, handheld electronics, wireless and fiber communications, test equipment, instrumentation, video displays, and automotive applications. We will supply the excellence ICL7660CSA+ Integrated circuit to you..

ICL7660CSA+ quotation,
One River are ICL7660CSA+ supplier，
We will quote ICL7660CSA+ MAXIM Integrated circuit to you within 24 hours

The best price:
ICL7660CSA+ specific price wil be based on quantity that you or your company order.But the price of ICL7660CSA+ MAXIM Integrated circuit will be the best market prices, as we are direct suppliers and distributor.
Lead time within 1-3 business days:
ICL7660CSA+ will arrive on your desk within 1-3 business days.we not only can save your layers of turnover but also your time,because of our dense purchasing network team.we will arrange the fastest delivery to let you have ICL7660CSA+ MAXIM Integrated circuit as quickly as possible.
You can choose the shipping express that you need,like UPS,Fedex,DHL,TNT and so on.
Quality control system:
All products have to pass our Quality Control system before delivery,the high-quality of ICL7660CSA+ MAXIM IC to protect your rights
MAXIM Integrated circuit are normally sensitive parts,so our QC should fully check every details,include the marking,pins,surface,package.and so on.
Good conditon
The Integrated Circuits are well kept in good condition,most of them with factory package.
If the parts without factory package,we will let you know and we will put the parts in vacumm sealed package to keep well in good conditon,avoiding any static electricity affect.And the bag contains moisture-sensitive devices.
Best service:
Before sale ICL7660CSA+,you will got details.please feel free to let us know,we will provide you comprehensive information ,like package case, pakcage,lead time,photo,datasheet,PDF,etc.   After sale ICL7660CSA+ MAXIM Integrated circuit,our professional service team and quality control system are always ready to reply and solve your question in the shortest time
To this,we add a large service force,constantly in training,100 % dedicated to customer satisfaction, Any inquiries we can do for you ,pls feel free to let us know,you will got the best before sales and after sales services
(the best price,the shortest leadtime,the best quality product,the most efficient services to meet your needs)

 if you need more details ofICL7660CSA+,like please contact one river,our global service team will do our best for you

ICL7660CSA+,MAXIM IC
