LM158H/883Q quotation,LM158H/883Q short L/T,LM158H/883Q datasheet

IC OP AMP DUAL LOW PWR TO-99-8,military rating

Leaded

Within 3 days

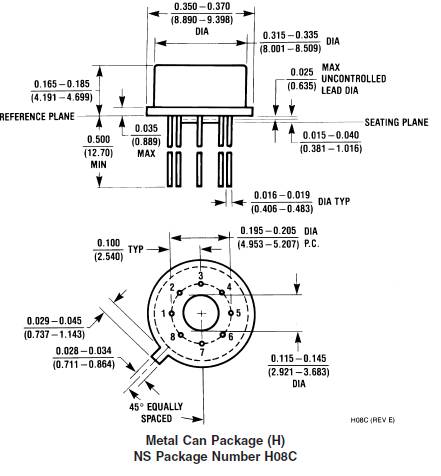

TO-99-8

500pcs/Box

 Two internally compensated op amps

 Eliminates need for dual supplies

 Allows direct sensing near GND and VOUT also goes to GND

 Compatible with all forms of logic

 Power drain suitable for battery operation



 Available in 8-Bump micro SMD chip sized package

 Internally frequency compensated for unity gain Large dc voltage gain: 100 dB

 Wide bandwidth (unity gain): 1 MHz(temperature compensated)

 Wide power supply range:Single supply: 3V to 32V or dual supplies: ±1.5V to ±16V

 Very low supply current drain (500 μA)—essentially independent of supply voltage

 Low input offset voltage: 2 mV

 Input common-mode voltage range includes ground

 Differential input voltage range equal to the power supply voltage

 Large output voltage swing

absolute maximum ratings over operating free-air temperature (unless otherwise noted)



Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.Consult packaging section of databook for thermal limitations and considerations of package.



The LM158 series consists of two independent, high gain,  internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.  Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies. The LM358 and LM2904 are available in a chip sized package  (8-Bump micro SMD) using National’s micro SMD package technology.
